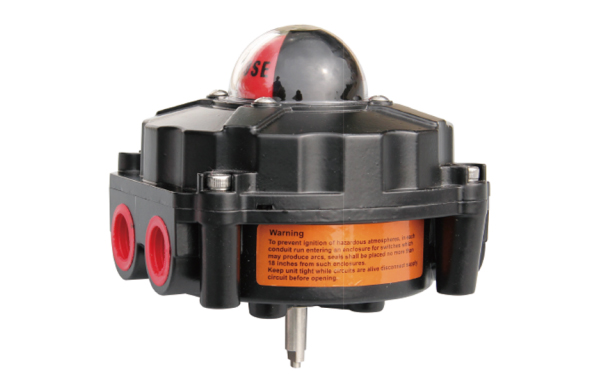

ITS/APL500  LIMIT  SWITCH

Profile

        ITS/APL500  Limit Switch  is a device that detects the switching position of the valve,sends a switching signal to the control room, and confirms the switching state of the valve through an external  dome  indicator.

Feature

              ·High  reliability:Metal  enclosure with  dustproof and waterproof design.
              ·Adjustable  limit:Supports adjusting the trigger position to adapt to the stroke requirements of different valves.
             ·Strong  compatibility:Output  signals  compatible  with  multiple control  protocols.
             ·Integrated solenoid valve:Compact structure,easy to  install.

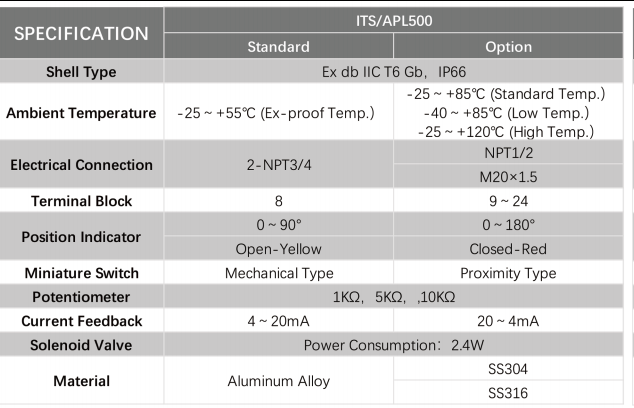

         Technical Parameters

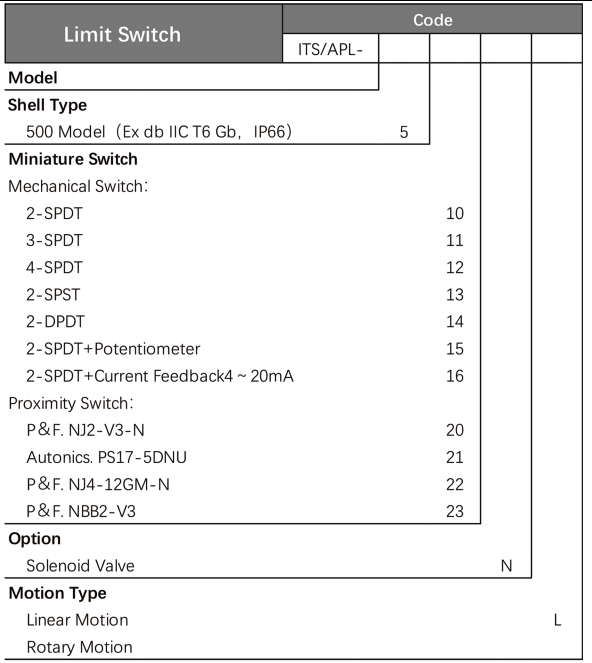

Order Information

        Integrated  Solenoid  Valve                                     SS304/316
