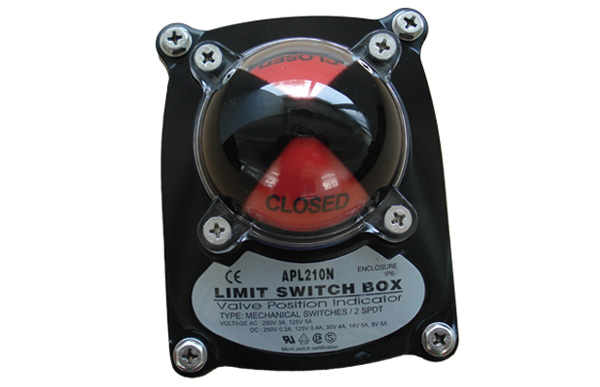

APL200、APL300 LIMIT SWITCH

Profile

        APL200/300 Limit Switch is a device that detects the switching position of the valve,sends a switching signal to the control room, and confirms the switching state of the valve through an external  dome  indicator.

Feature

              ·High  reliability:Metal  enclosure with  dustproof and waterproof design.
              ·Adjustable  limit:Supports adjusting the trigger position to adapt to the stroke requirements of different valves.
             ·Strong  compatibility:Output  signals  compatible  with  multiple control  protocols.

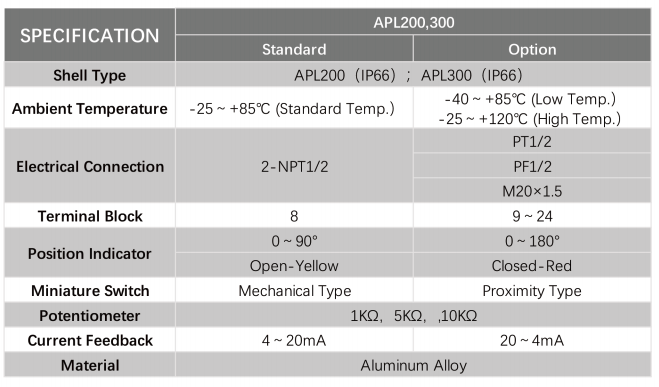

          Technical Parameters

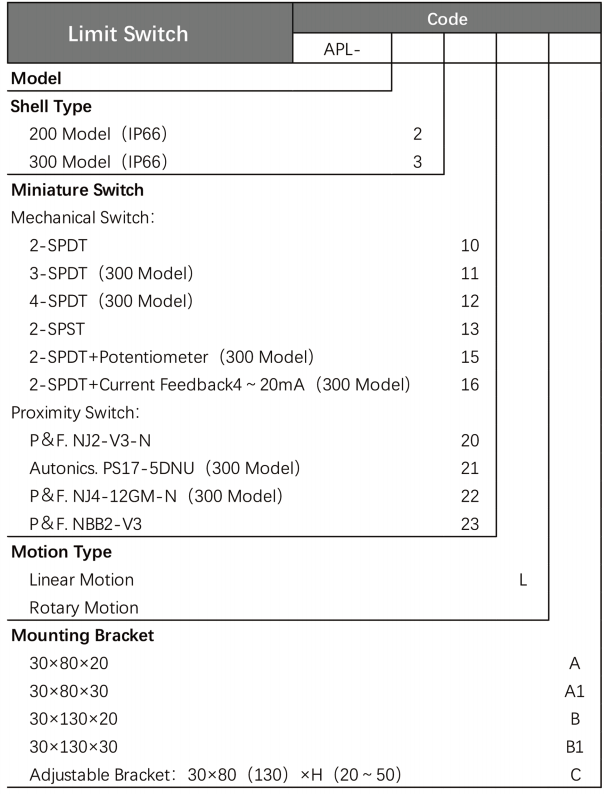

Order Information
