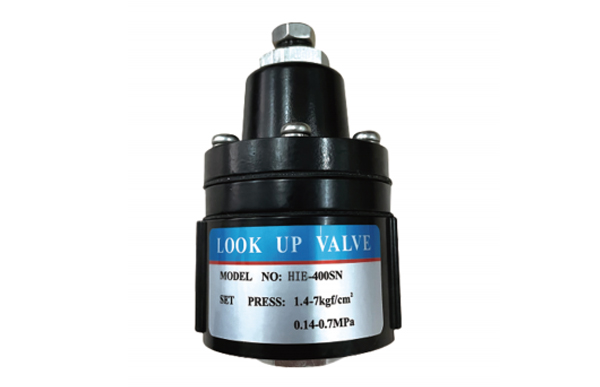

HIE-400 AIR LOCK VALVE

Profile

        HIE-400 Air Lock Valve is a device that uses the main air supply as the signal pressure.When the signal pressure drops below the set pressure of the HIE-400 Position Holding Valve,it cuts off the internal air circuit of the valve to prevent air flow.

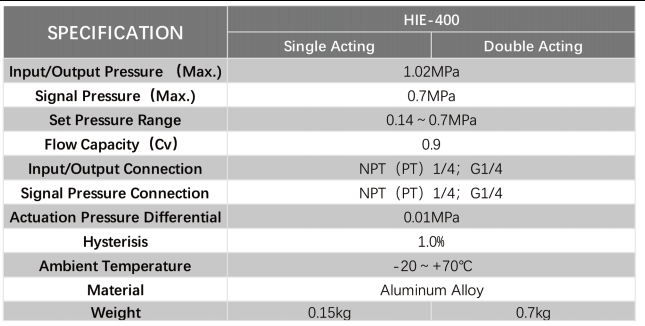

         Technical Parameters

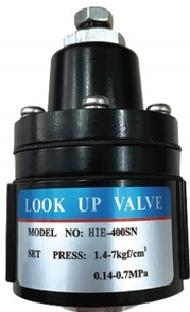

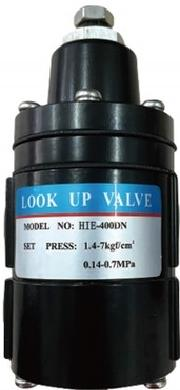

                               Single-acting                                                    Double-acting
